Victron Energy

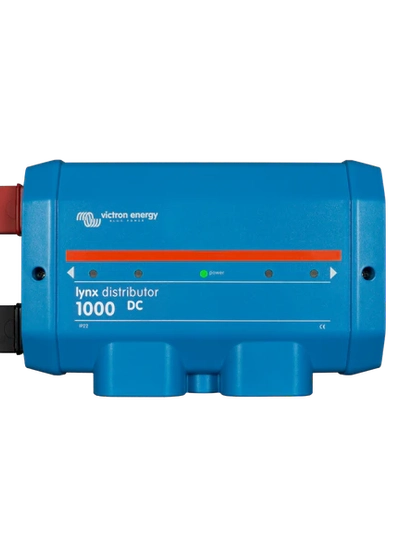

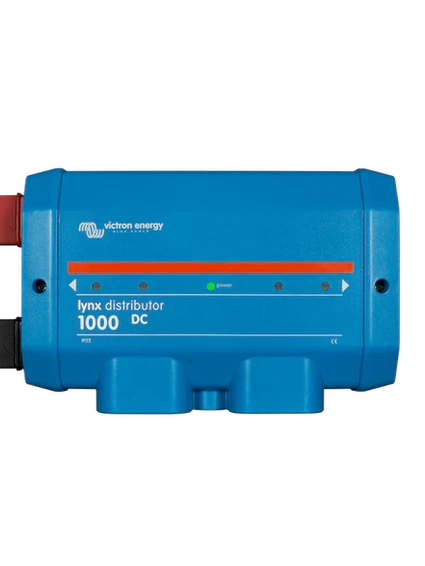

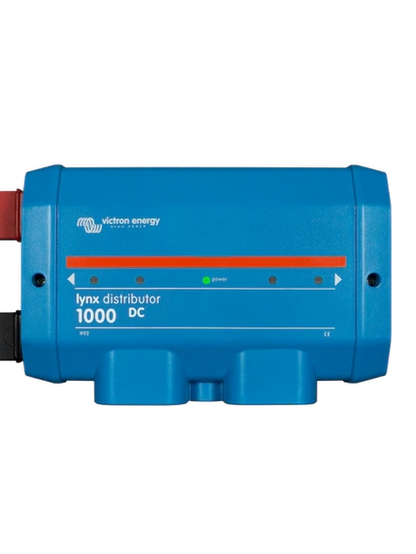

Victron Lynx Distributor

Victron Lynx Distributor

Regular price $335.00 NZD
Regular price Sale price $335.00 NZD
Sale Sold out
GST included.
Size

A modular DC bus bar with locations for four DC fuses. It monitors the status of each fuse and indicates its condition with an LED on the front. Part of the modular Lynx distribution system.

Contains a positive and negative bus bar and provides a connection for four individual DC equipment circuits, loads, or DC groups. It has space for individual DC fuses per DC group.

There is an optional feature of an LED for each fuse to indicate if a fuse is blown. If you wish to use the fuse indication LEDs on the Lynx Distributor, it also requires a connection to a Lynx Shunt. The Lynx Shunt contains the necessary wide input (8 to 70VDC) power supply to output the required 5V (4.5V-5.5V) power requirement of the Lynx Distributor circuit board.

RJ11 fly leads are used to connect the Lynx Shunt to the Distributor. This RJ11 cable is supplied with the Distributor in the box. There are two ports on the Lynx Shunt, and it is possible to use either.

When all is OK, only the central LED is green; when a fuse has blown (or is missing), the central and blown fuse circuit LEDs turn red. If you are not using all connection points in your DC distribution, it may be necessary to fit dummy fuses to extinguish the red LEDs.
