Nocpix Powered by Infiray

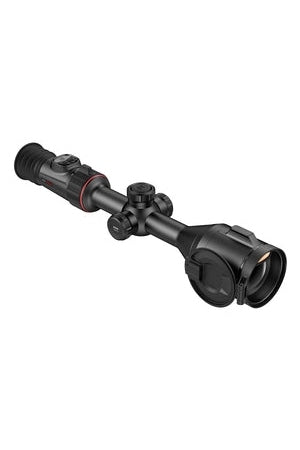

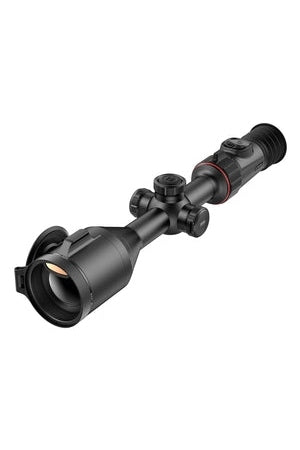

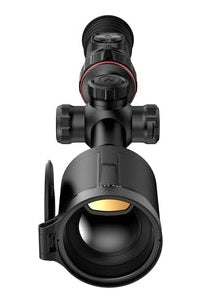

Nocpix Ace S60R LRF Thermal Scope

Nocpix Ace S60R LRF Thermal Scope

Regular price $12,499.00 NZD
Regular price Sale price $12,499.00 NZD
Sale Sold out
GST included.

Introducing the ACE series, the flagship thermal riflescope designed for all hunting environments. It features a self-developed high-resolution thermal sensor, integrated LRF, and advanced Reality+ and Vision+ systems. Deliver unparalleled image quality and superior performance.

Superior Sensor Ensures Excellence

Equipped with a Gen-2 HD thermal sensor offering a resolution of up to 1280×1024 and a frame rate of up to 60Hz, the ACE provides stable performance with an NETD≤15mK. This enables it to detect even the slightest temperature variations, delivering exceptionally detailed and smooth thermal imagery, even when tracking fast-moving prey.

Enhanced Clarity with Larger Lens

The ACE series feature 60mm/F1.0 or 50mm/F0.9 lenses. The larger objective lens allows higher energy transmission through to the sensor resulting in 20% finer Image to reach the sensor. Coupled with high-transmittance lens elements, it generates brighter and clearer images.

Long-Distance Detection at Ease

The ACE series boasts an impressive detection range of up to 3100 meters. This capability allows clear identification of distant targets, providing a significant advantage for long-range hunting.

Reality+ Imaging Enhancement

Our proprietary Reality+ image processing algorithm effectively eliminates environmental temperature noise, enhancing contrast and detail clarity

New Vision+ System with Ocular Zoom

The new Vision+ system features a 1.03-inch round 2560×2560 AMOLED screen and industry-leading ocular zoom for direct optical magnification. Unlike traditional e-zoom, it prevents blurring and distortion in close-up views. Enjoy high-resolution images and a broader field of view for an immersive and comfortable observation experience.

Eliminate Battery Capacity Concerns

The ACE employs a dual-battery system with a 4000mAh built-in battery and an additional replaceable 18650 battery. This setup meets the demands of prolonged outdoor hunting sessions.

Designed for Hunting and Shooting

The ACE includes essential features for hunting scenarios such as ballistic calculations, auto screen shutdown, recoil-activated video recording, and a shutterless design, making perfect hunting achievable. (Ballistics in LRF Models only)

Outdoor-Friendly Design

The ACE incorporates thoughtful features such as a focus adjuster, charging cover, and a Gallery feature for direct video playback, significantly enhancing user convenience.

Rigorous Testing & High-durability

Crafted from high-strength aluminum alloy, the ACE undergoes rigorous impact resistance testing, ensuring exceptional robustness and durability for years to come.

Features

FEATURES
Type: Vox
Resolution: 640 x 512
Pixel Size: 12
Thermal Sensor:
NETD, mK: ≤15
Frame Rate: 60
Objective Lens: 50mm F0.9
Field of View: 8.8 x 7.0
Field of View (Linear): 15.4 x 12.3
Magnification: 3~24
Detection Range: 2600
Eye Relief: 50
Exit pupil Diameter: 8
Diopter: -5 ~ +5
Display Type: AMOLED
Display Resolution: 2560 x 2560
Battery: Built-in battery/4000mAh + Replaceable 18650 battery
Max. operating Time: 7
Range Finding Distance: 1200
Laser: Class 1
Ballistic Calculation: YES
External Power Supply: 5V (Type C)
Wi-Fi/APP: YES
MIC: YES
Photo / Video Recorder: YES
Recoil Activated Video: YES
Memory Capacity: 64GB
IP rating: IP67
Max. recoil power on rifled weapon: 6000
Max. Operating Temperature: -20 ~ +50
Compatible mount: 30mm
Weight (oz): 39.51
Weight (g): 1120
Dimensions (in): 14.37 x 3.54 x 2.68
Dimensions (mm): 365 x 90 x 68
